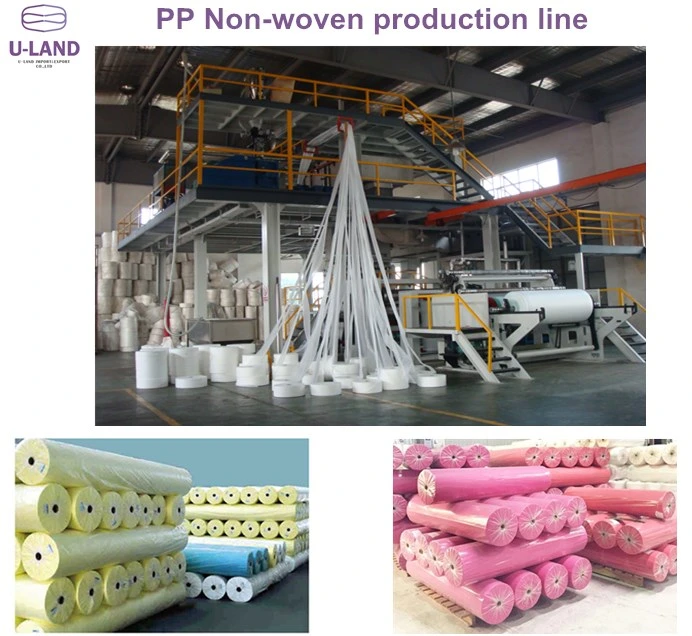

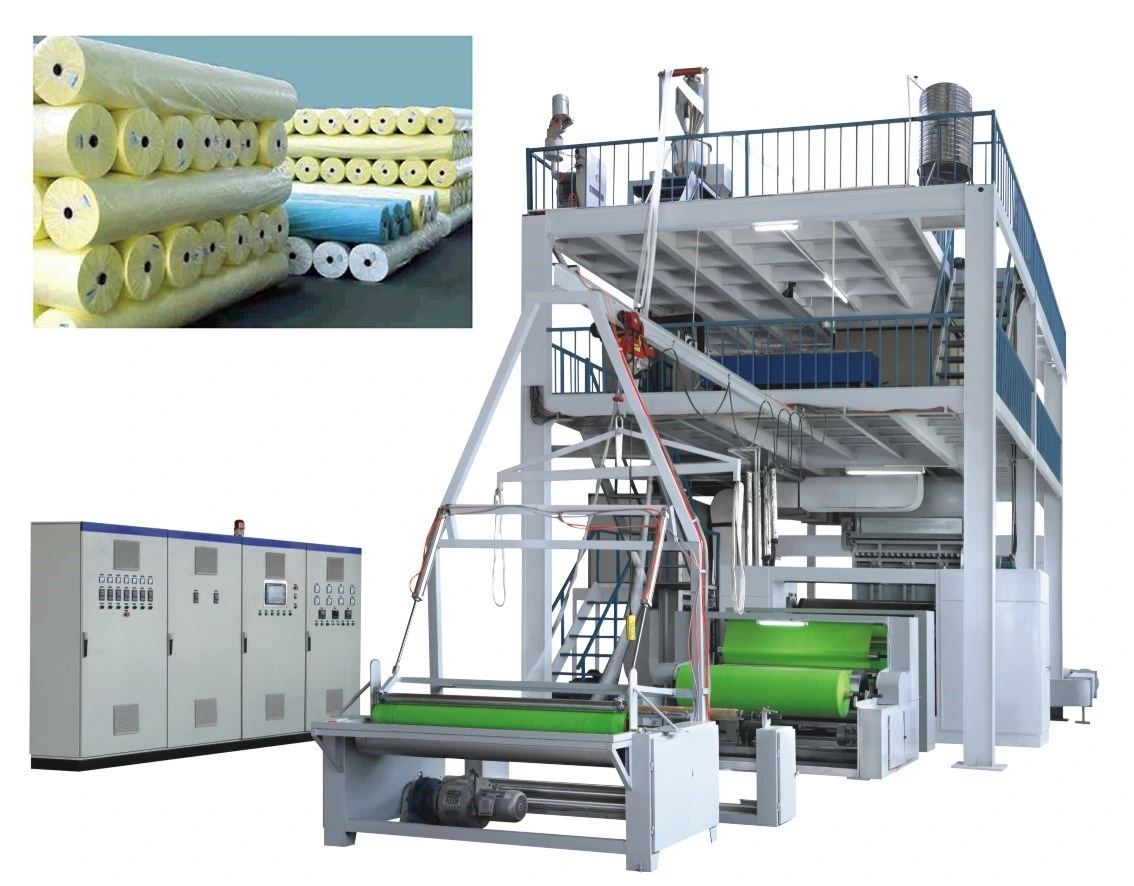

Nonwoven Fabric Cloth Produce Line
I,Usage:
The machinery is suitable to the production of non woven fabric by spunlaid and hot-rolled reinforcement.With PP as its main material ; color masterbatch, antioxidant,fire retardant as its additives to produce nonwoven fabric with different colors and different elements to fit the needs of different usages.
Application fields:
Hygiene: Baby diaper, Sanitary Napkin, filtering material etc.
Medical usage: operation suit, exposure suit, cap, face mask, disposable clothes, etc.
Packing and lining: Shopping bags, Bags for business, parents packet, dust cover, sleeping bag for children, leather shoes,luggage, mattress, sofa lining and so on.
Agricultural usage: Cover for plant to anti-frost, insect-resistant sunshades, awning clothes, packing bags for crops, etc
II,Technical Process(SS)
III,Main technique parameter:
1.2 Melt point:166ºC
1.3 Ash: <0.15-0.25%
1.4 PP color master batch and additives
IV,Fabric approval standard for equipment
Shipment:
I,Usage:
The machinery is suitable to the production of non woven fabric by spunlaid and hot-rolled reinforcement.With PP as its main material ; color masterbatch, antioxidant,fire retardant as its additives to produce nonwoven fabric with different colors and different elements to fit the needs of different usages.
Application fields:
Hygiene: Baby diaper, Sanitary Napkin, filtering material etc.
Medical usage: operation suit, exposure suit, cap, face mask, disposable clothes, etc.
Packing and lining: Shopping bags, Bags for business, parents packet, dust cover, sleeping bag for children, leather shoes,luggage, mattress, sofa lining and so on.
Agricultural usage: Cover for plant to anti-frost, insect-resistant sunshades, awning clothes, packing bags for crops, etc
II,Technical Process(SS)
III,Main technique parameter:
- PP chips requirements
1.2 Melt point:166ºC
1.3 Ash: <0.15-0.25%
1.4 PP color master batch and additives
- Products Width:1600mm
- Production line speed :350m/min
- Fabric Filament Denier: ≤2.0denier
- Fabric Output:3000ton/year
- Fabric Weight range:10~150g/m2
- Fabric GSM variation: less than 3%
- Maximum diameter of fabric per roll:1250mm
- Screw diameter: Φ130×2+Φ105×2
- Power consumption: 800KW*H for producing one ton fabric
- Transformer capacity: 315KVA for SS,
- Size of machine:10m*25m*10.5m(W*L*H)
IV,Fabric approval standard for equipment
| Items | g/m2 Specification | 15 | 30 | 45 | 60 | 90 | 120 | |
| Allowable deviation(%) | First class | ±8 | ±7 | |||||
| Final product | ±10 | ±9 | ||||||
| Width deviation(%) | First class | +2.0,-1.0 | +2.0, -1.0 | |||||
| Final product | +2.5,-1.5 | +2.5,-1.5 | ||||||
| Fracture Strength | Longitudinal Strength N≥ | First class | 15 | 35 | 50 | 68 | 95 | 130 |
| Final product | 12 | 30 | 45 | 65 | 91 | 108 | ||
| transverse strength N≥ | First class | 10 | 28 | 44 | 64 | 82 | 95 | |
| Final product | 8 | 25 | 38 | 57 | 77 | 90 | ||
Shipment:
